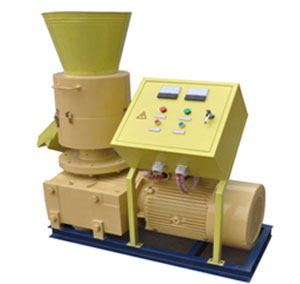

Biomass Pellet Mill
Biomass pellets fuel is often a general term utilized to describe any organic material which might be utilized as a fuel. For instance wood, wood waste, energy crops and agricultural waste like straw. A biomass pellet mill has variable characteristics that make it feasible to procedure different biomass pellets fuel. As an example the biomass pellet mill should have sufficient power to method woody biomass, and also the capability to control functions including die speed. The uses for these pellets could possibly be as fuel, animal feed, animal bedding as well as cooking pellets. A biomass pellet mill can be a general term to describe a pellet mill, nonetheless some pellet mills have certain characteristics for processing specific supplies.
Biomass bioenergy includes pellets, liquid and gaseous fuels. However to process biomass the raw material has to be transported to the factory. Therefore even if liquid or gaseous fuels are the main object the a biomass pellet mill is required to compress the material to reduce transportation costs. Three phase power is generally required to operate the pellet mill, so this should be put under consideration. There are some small pellet mills that can operate on single phase.
Our biomass pellet mills are used to compress wood—solid wood, tree trimmings, wood chips, sawdust, straw, bark and shavings—without additives to make dense, uniformly sized, high quality pellets. The main advantage of ZLSP R-type pellet mill is that it can produce pellets without the need of a binder, with only one pressing. It is the ideal pellet mill to process sawdust and hard materials due to this high level of efficiency.
Video of Biomass Pellet Mill:
Main Technical Data of Biomass Pellet Mill:
Type | Power (Kw) | Capacity | Dimension (mm) |
NG/GW
(kg)
|
ZLSP D-Type 200B | 3-phases 7.5kW | 200-300 | 1000x430x950 | 200/230 |
ZLSP D-Type 200B | 200-300 | 900x430x950 | ||
ZLSP D-Type 230B | 3 phases 11kw | 300-400 | 1140x470x970 | 290/320 |
ZLSP D-Type 230B | 300-400 | 980x470x870 | ||
ZLSP D-Type 260B | 3 phases 15kw | 400-600 | 1200x500x1070 | 330/360 |
ZLSP D-Type 260B | 400-600 | 1120x490x1070 | ||
ZLSP D-Type 300B | 3 phases,22kW | 700-800 | 1270x520x1070 | 410/450 |
ZLSP D-Type 300B | 700-800 | 1170x520x1070 | ||
ZLSP D-Type 360 | 3-phases 22kW | 1270x520x1070 | 470/500 | |
ZLSP D-Type 360 | 1270x520x1070 | |||
ZLSP D-Type 400 | 3 phases,30KW | 900-1100 | 1470x600x1150 | 550/585 |
ZLSP D-Type 400 | 900-1100 | 1470x600x1150 | ||
ZLSP D-Type 200A | 15hp diese | 200-300 | 1000×460×900 | 210/240 |
ZLSP D-Type 200A | 200-300 | 1000×460×900 | ||
ZLSP D-Type 230A | 22Hp diesel | 300-400 | 1180x560x1020 | 280/310 |
ZLSP D-Type 230A | 300-400 | 1090x520x820 |
