biomass briquette making machine

Biomass briquette making machine is a screw type briquette machine. It is made by high temperature extrusion and charring from raw materials like sawdust, bamboo shavings, cotton stalks, rice husks, peanut shells, bagasse, furfural residue, twigs, etc. Since it can replace traditional charcoal, it is also called New Generation Energy.
The raw material, after dried, can be directly pressed by the biomass briquette machine at high temperature without adding any binder. The briquettes made out have tight structure and square or poly prism shape sticks.
Compared to traditional charcoal, the charcoal made from biomass briquettes have the advantages as regular shape, high intensity, good thermal conductivity, uniformity, flame resistance and does not burst ash. It is a dedicated fuel for biomass boiler.

GCBC Series Biomass Briquette Making Machine

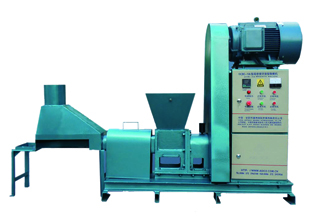

GCBC-I biomass briquette making machine	GCBC-II biomass briquette making machine

Model	GCBC- I	GCBC- II
Capacity kg/h	180-210	300-350
Motor Power (kw)	15	18.5kw
Electric heater (kw)	2.2kw*2	2.2kw×2
Life of the inner former	1-2years	1-2years
Size of briquettes	Dia.50mm*L.480mm	Dia.60mm*L.500mm
Size of inside hole	Dia.16mm	Dia.16mm
Density of briquettes	1.3 g/cm3	1.3 g/cm3
Weight(kg)	700kg	1000kg
Overall dimension(mm)	2700*600*1600 mm	2000*600*1700 mm

Final Briquettes

Charred charcoal briquettes
