roller briquette press machine
Roller briquette press machines are used to press powdery raw materials into briquettes for better usage, storage or transportation. Generally it is used to press coal dust like brown coal, lignite coal, lean coal, anthracite, peat, and the old brown coal, charcoal fines, coke dust/fines, peacoke, carbon black, carbon dust, clay, activated carbon, etc.How does the roller briquette press machine work
In a roller briquette press machine, material is densified by the compression between two main counter-rotating rolls. The roll surfaces have pockets to form briquettes into desired size and shape when the material passes between the rolls.The materials size and moisture required before briquetting:
In order to ensure the good quality and mechanical strength of the final briquettes, special care should be taken to ensure that the granule size fed to the machine is kept under 3mm, preferably in the range of 30-40% smaller than 1–2 mm, with no more than 10% over 2 mm.The roller briquette press machines can be divided into 3 types

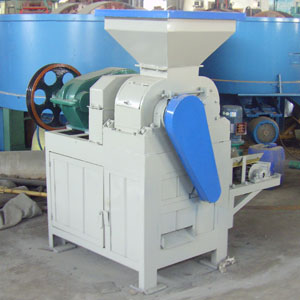

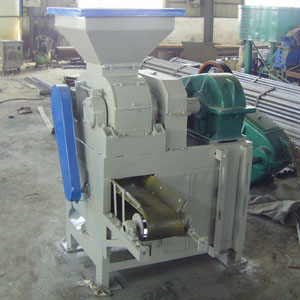

1. Minimum coal/charcoal/coke briquette machine
Structure: Two-roller single pressing typeAdvantages: low cost machine, which is suitable for individual or small industry.
Main parameter of Minimum coal/charcoal/coke briquette machine:
Model | GCXM-1 |
---|---|
Power | 5.5kw |
Production capacity | 1-2TPH |
Diameter of roller | 290mm |
Width of roller | 200mm |
Form of structure | 2 rollers single press |
Overall size | 1200*1000*1420mm |
Weight | 560kg |

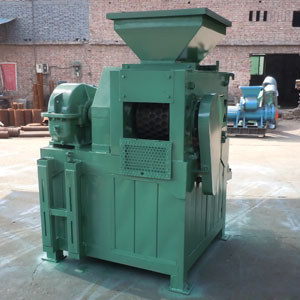

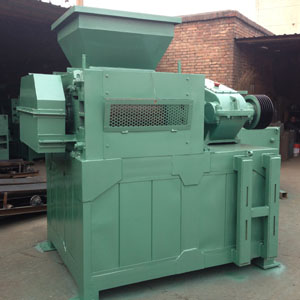

2. Mechanical coal/charcoal/coke briquette press
Structure: four-roller double-pressing type.Advantage: The four rollers apply pressure twice to the briquettes being produced, so that the briquettes made by this roller briquette press machine are stronger with a high density and the surface is smoother. This briqueting press machine has got a National Patent in China.
Main pamameter of coal/charcoal/coke briquetting machine
Model | capacity | Power(kw) | Speed of main shaft | Type of pressure | Material of roller | Form of structure |
---|---|---|---|---|---|---|
GCXM-4 | 4TPH | 7.5-15 | 18r/min | Mechanical | 65Mn | Four roller double press |
GCXM-6 | 6TPH | 11-18.5 | 15r/min | Mechanical | 65Mn | Four roller double press |
GCXM-8 | 8TPH | 15-22 | 15r/min | Mechanical | 65Mn 9cr2Mn | Four roller double press |

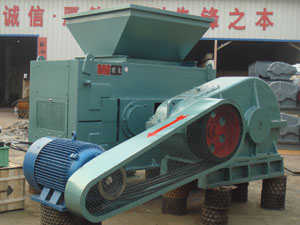

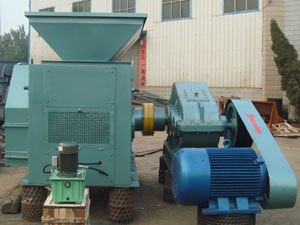

3. Mechanical and hydraulic coal/charcoal/coke briquette machine
Structure:*Four-roller double-pressing type
*Mechanical and Hydraulic structure
Advantages:
*The four rollers apply pressure twice to the briquettes being produced, so that the briquettes made by this roller briquette press machine are stronger with a high density and the surface is smoother. This briqueting press machine has got a National Patent in China.
*Mechanical and Hydraulic structure: when the hydraulic system goes wrong, you can use mechanical type instead and at the same time maintaining it. It does not influence the machine's working.
Main pamameter of mechanical and hydraulic coal/charcoal/coke briquette press machine
Model | capacity | Power(kw) | Speed of main shaft | Type of pressure | Material of roller | Form of structure |
---|---|---|---|---|---|---|
GCXM-10 | 10TPH | 18.5-30 | 13r/min | Mechanical & Hydraulic | 65Mn/9cr2Mn | Four roller double press |
GCXM-15 | 15TPH | 30-45 | 13r/min | Mechanical & Hydraulic | 65Mn/9cr2Mn | Four roller double press |
GCXM-20 | 20TPH | 55-75 | 13r/min | Mechanical & Hydraulic | 65Mn/9cr2Mn | Four roller double press |
GCXM-30 | 30TPH | 75-90 | 10r/min | Mechanical & Hydraulic | 65Mn/9cr2Mn | Four roller double press |

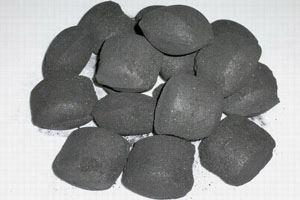

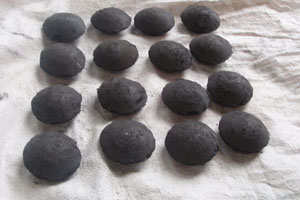

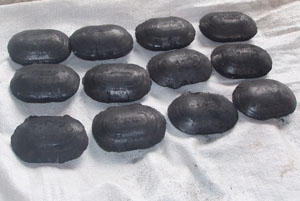

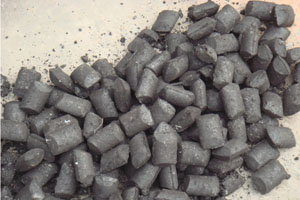

Final briquettes:
Shape: can be round, pillow, oval.Size: changeable size 18mm-80mm, made according to clients requests.
The briquettes made by our roller briquette press machine can be burned or packed for sale. They have good shape, smooth surface, high density to be not easy to break apart.
If you are attacted by this machine, please feel free to contact us for details!
