16-20ton/24h vegetable oil press

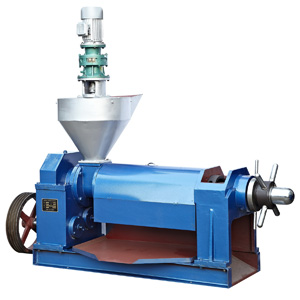

ZX-150 vegetable oil press is composed of feeder, gearbox, pressing cage, screw shaft and machine stand, etc.

It is used to process vegetable oil from raw materials like peanut, soybean, cotton seed, rape seed/canola, sesame, tung nuts, etc. it is a middle-large scale vegetable oil processing machine, the capacity is 16-20ton per 24 hours, which can meet the demand of a medium scale oil plant.

ZX-150 vegetable oil press Model ZX-150
Capacity 16-20T/24H
Outline Dimension 2175*786*1782mm
Weight 1200kg
Motor Power 30kw
Grinding shaft rotational speed 33r/min

How this vegetable oil press machine works?

This vegetable oil press machine utilizes the screw shaft which is set-up with different styles of screws and rotates when machine is running to push the material into chamber. Owing to the spiral helical pitch of screws becomes shorter and the spiral depth of screw becomes shallower, in the chamber the volumes between screws and pressing ring inner are smaller, pressure produced from curve saw-tooth of pressing ring inner, which oil is separated out. Oil releases from the gaps between bars and oil slots between pressing rings. The oil cake releases from the cake release state.

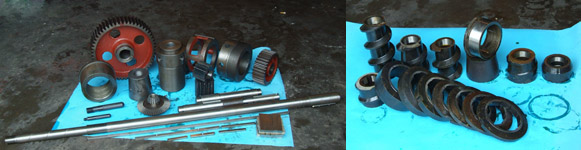

accessories of vegetable oil press
Accessories of vegetable oil press

Processes of vegetable oil processing

Step 1. Before pressing, the oil materials should be pretreated. For example, peanut and sunflower seeds or similar materials with hull should be cleaned, pealed and broiled. Cotton seeds should be delinted, which means to remove the residual cotton from the seeds, then broken. Soybeans need to be softened and crushed to be better for pressing.

Step 2. Then the half-processed oil materials can be fed into the vegetable oil press.

Step 3. After pressed, the vegetable oil may contain certain impurities or unhealthy chemicals, in this case the oil need to be filtered or refined.

Step 4. When vegetable oil processing is finished, it goes to the packing of oil.


GEMCO is a leading manufacturer of vegetable oil press; we are professional in designing vegetable oil processing line for different oil materials. We have exported our oil presses to hundreds of countries and nations, all have won great reputation.
