Pellet Mill Machine Output Pellet Fuel Appearance Abnormal Solution

When producing pellet fuel, sometimes wood pellet fuel with abnormal appearance appears. Experienced wood pellet mill machine manufacturers will know what is the cause of this situation and can quickly eliminate it. For inexperienced or new wood pellet mill manufacturers , sometimes you can't find the crux of the problem, and only ask the outside world or the wood pellet mill machine manufacturer for help. Here are the reasons and improvement methods of three common wood pellets with abnormal appearance. This is a summary of GEMCO Machinery's years of experience in the development and commissioning of pellet machines for comparison and reference in the production of wood pellets.

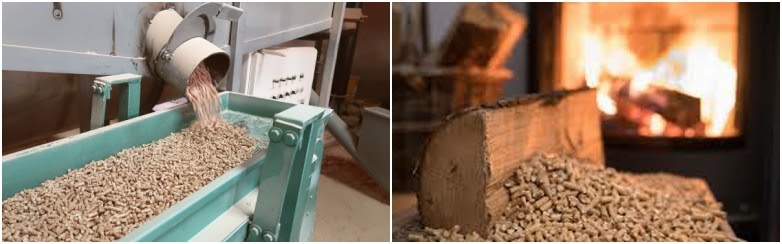

Wood Pellet Mill Production

Improvement Method for Abnormal Appearance of Pellet Produced by Pellet  Mill Machine

Wood Pellets are Bent and Have Many Cracks on One Side

This phenomenon usually occurs when the wood pellets leave the ring die. In the process of pellet mill machine production and manufacturing, when the cutter position is adjusted far away from the surface of the ring die and the knife edge is blunt, the particles are easily broken or torn by the cutter instead of being cut when they are extruded from the die hole. At this time, there are some wood pellets. Bending to one side and showing many cracks on the other side.This kind of sawdust particles will often break from these cracks when they enter the cooling machine for cooling or transportation, resulting in too many wood particles or too short particles after the production process.

The Improved Method :

• Increase the compression force of the pellet mill machine's ring die on the wood pellets, that is, increase the compression ratio of the ring die, thereby increasing the density and hardness of the produced pellets;
• Crush the wood, which is the raw material of the wood particles, to be finer to improve the density of the wood particles and prevent the wood particles from becoming soft;
• Adjust the distance between the cutting knife of the pellet mill machine and the surface of the ring die, usually the distance between the knife edge and the outer surface of the ring die is not greater than the diameter of the wood pellets produced, or replace with a sharper cutting blade;

Horizontal Cracks Traverse the Entire Wood Pellet

Similar to the previous phenomenon, the cracks occur in the cross section of the wood pellets, but the pellets are not bent. This situation may occur when the fluffy wood chips with more fiber are put into the pellet mill machine for production and processing. This kind of wood pellets is often when the wood pellets are squeezed into the pelletizing holes of the wood pellet mill machine ring die. Because they contain fibers longer than the aperture, when the pellets are extruded, the pellets are on the cross section due to the expansion of the fibers. Transverse cracks are produced, producing the appearance of fir-bark-like sawdust particles.

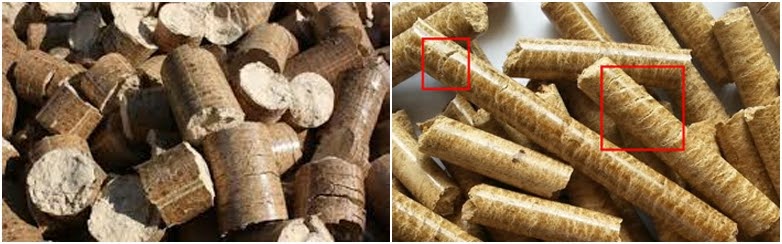

The Pellet Mill Machine Produces Cracked Pellets

The improvement method is to increase the compression force of the pellet mill machine's ring die on the pellets, that is, increase the compression ratio of the ring die; control the fineness of the pulverization of the fiber, and the maximum length cannot exceed one-third of the particle size; reduce production to reduce the speed of wood particles through die holes and increase compactness.These three points can effectively alleviate the cracks in the pellets produced by the pellet mill machine.

Wood Pellets Produce Vertical Cracks

During the production process, some customers cannot evenly dry the wood due to the selected type of drying machine, resulting in uneven moisture content in the raw wood chips. After the ring die is compressed and pelletized, it will be affected by the effect of moisture and the raw material itself. With the elasticity, it bounced and produced vertical cracks.The improvement method is to improve the drying effect of the drying machine and increase the effective length of the die hole.

In short, for the abnormal appearance of the particles in the production and processing of the pellet machine, several representative manifestations are discussed above, and some abnormal appearance of the particles are not representative, so they are not listed here for discussion. From GEMCO Machinery’s analysis of these situations, it can be seen that there are many reasons for these phenomena, and they are not completely isolated from each other. This requires us to analyze such problems in the working process of the pellet machine. Grasp the key to the problem to be able to solve the problem. If you want to invest biomass wood pellet machine industry,please do not hesitate to do this, because it have a bright development prospects, and we will provide you some methods to save the production cost of  biomass wood pellets machine,so welcome to contact us freely.
