pelletizing machine
Our pelletizing machine or pellet press is a new kind of pellet mill special for wood sawdust in pelletizing plant. It can also apply to other biomass materials like the stalk, straw, peanut shell and so on. For this kind of pelletizing machine, the output volume is high, energy consumption is low and the operation is convenient.
There are several kinds of pelletizing machine as follows:

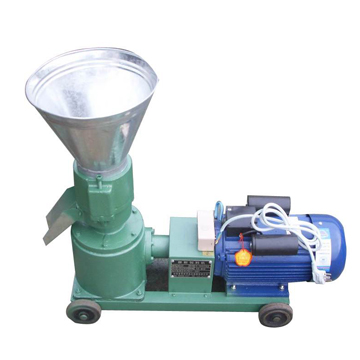

pelletizing machine with electric engine:
|
Type |
Power (Kw) |
Capacity |
Dimension (mm) |
NG/GW |
|
ZLSP120 |
3kw 3-phases or 2.2 kw single phase |
75-100 |
710x390x910 |
80/100 |
|
ZLSP120 |
75-100 |
670x390x910 |
|
|
|
ZLSP120A |
8hp diesel |
75-100 |
730x320x670 |
|
|
ZLSP120A |
75-100 |
900x440x730 |
120/140 |
|
|
ZLSP150 |
4kw 3-phase |
90-120 |
750x350x650 |
95/115 |
|
ZLSP150 |
90-120 |
700×350×650 |
|

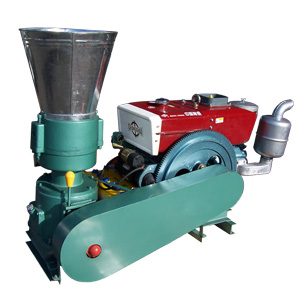

pelletizing machine with diesel engine:
|
Model
|
Power (HP)
|
Output (kg/h)
|
Measurements (mm)
|
N.W/G.W (kg)
|
|
ZLSP120A D-Type
|
8
|
40-80
|
870*440*730
|
120/140
|
|
ZLSP150A D-Type
|
8
|
50-100
|
870*460*730
|
130/150
|
|
ZLSP200A D-Type
|
15
|
100-150
|
1180*560*950
|
280/310
|
|
ZLSP230A D-Type
|
22
|
150-300
|
1180*560*950
|
280/310
|
|
ZLSP260A D-Type
|
30
|
200-450
|
1840*700*1160
|
460/490
|
|
ZLSP300A D-Type
|
55
|
400-600
|
2200*600*1230
|
520/560
|
|
ZLSP360A D-Type
|
55
|
600-700
|
2250*600*1230
|
540/590
|
|
ZLSP400A D-Type
|
55
|
700-800
|
2270*620*1260
|
750/790
|
flat die pelletizing machine:
|
Model
|
Power(kW)
|
Output (kg/h)
|
Measurements (mm)
|
N.W/G.W (kg)
|
|
ZLSP120B D-Type
|
3
|
40-80
|
710*390*910
|
80/100
|
|
ZLSP150B D-Type
|
4
|
50-90
|
750*350*650
|
90/120
|
|
ZLSP200B D-Type
|
7.5
|
80-120
|
1000*430*950
|
200/230
|
|
ZLSP230B D-Type
|
11
|
150-300
|
1140*470*970
|
290/320
|
|
ZLSP260B D-Type
|
15
|
300-450
|
1200*500*1070
|
330/360
|
|
ZLSP300B D-Type
|
22
|
400-600
|
1220*600*1000
|
410/450
|
|
ZLSP360B D-Type
|
22
|
600-700
|
1250*650*1050
|
470/500
|
|
ZLSP400B D-Type
|
30
|
700-800
|
1320*700*1100
|
550/580
|
ring die pelletizing machine:
|
Type
|
Power (kW)
|
Capacity (t/h)
|
Dimensions L*W*H (cm)
|
Net Weight (kg)
|
|
KMPM35
|
Feeder 0.75 Conditioner 5.5 ForceFeeder 0.55 Main engine 55
|
0.5-0.7
|
245×100×230
|
1990
|
|
KMPM42
|
Feeder 0.75 Conditioner 5.5 ForceFeeder 0.55 Main engine 90
|
0.8-1.2
|
320×110×285
|
2430
|
|
KMPM520
|
Feeder 0.75 Conditioner 5.5 ForceFeeder 0.55 Main engine 75*2
|
2.0-2.5
|
330×125×255
|
3500
|
