mechanical stamping briquette plant
GC-MBP-1000 mechanical stamping briquette plant is a kind of curing equipment to make wood chips, sawdust, crop straws and other agro-forestry wastes into solid fuel through crushing, drying, compressing and molding.The compressed fuel is lumpy, small in size, high in density, and without any additives. It is convenient for storage and transportation, and can increase the burning value per unit area more than ten times. GC-MBP-1000 mechanical stamping briquette plant has the characteristics of low power consumption, high production efficiency, long mechanical operation life and low maintenance rate. It can press both big rods and granules, realizing a dual purpose machine.

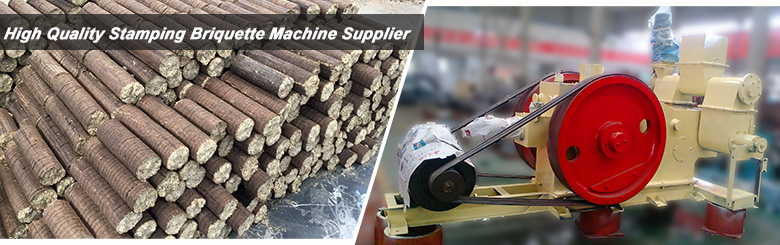

Mechanical Stamping Briquette
A strong mechanical stamping briquette equipment manufacturer must have a complete after-sales service system to ensure the smooth development of the mechanical stamping briquette plant. ABC Machinery's equipment after-sales service system mainly includes equipment installation and commissioning and technical issues. After purchasing the equipment, the customer can be responsible for the installation and commissioning of the equipment, so that the customer's mechanical stamping briquette project can be carried out smoothly. Customers can also contact ABC Machinery if they encounter technical problems in the process of making briquette. We can help customers solve the problems.
Brief Introduction of Mechanical Stamping Briquette Plant
Mechanical stamping biomass briquetting press is a kind of curing equipment to make wood chips, sawdust, crop straws and so on into rod-like fuel through crushing, drying, compressing and molding. Biomass rods are widely used in the heating system of industrial production, government, enterprise, and domestic service.
Complete Biomass Briquette Plant

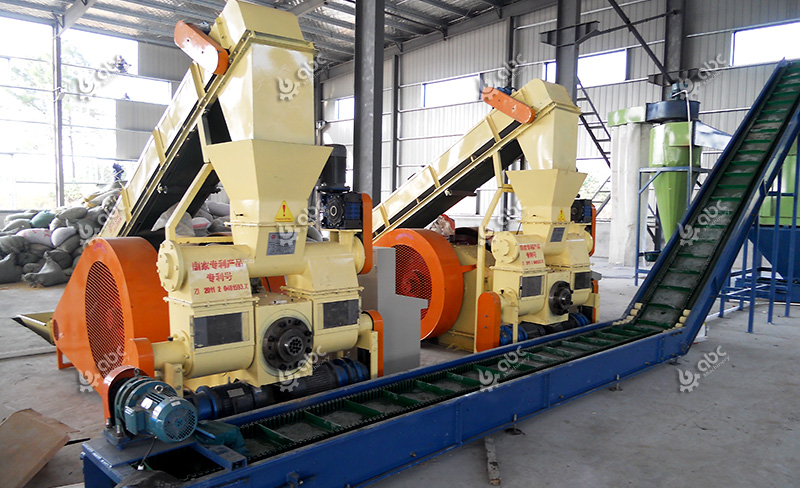

Small Punching Briquetting Plant
Mechanical Stamping Biomass Briquetting Technological Process
Mechanical Stamping Biomass Briquetting Technological Process
Mechanical stamping briquette equipment technical Parameter
| Main Components | Main Engine, Feeder, Electric control cabinet |
|---|---|
| Specifications |
Diameter 8mm-22mm pellets Diameter 30-70mm briquettes |
| Capacity | 0.8-1.2 t/h |
| Density | 1000-1300kg/m3 |
| Main engine power | 45KW |
| Weight | 7000kg |
| Dimensions |
Main engine: 3.4mX2mX1.8m Electric control cabinet: 1.2mX0.6mX1.2m |
| Operator | Two |
| Area | About 80 square meters |
The Key Equipment: Mechanical Stamping Briquette Machine
Changing different pressure die can produce different sizes of fuel rods(φ70mm/φ30mm) and pellets fuel （φ8mm/φ10mm/φ22mm). And it is convenient to change and 30minutes will achieve the replacement of mold.
The pellet making machine after changing pellet mold
The biomass briquette press after changing rods mold
| Mold Size | φ8mm | φ10mm | φ22mm | φ30mm | φ70mm |
|---|---|---|---|---|---|
| Holes | 61 | 37 | 7 | 4 | 1 |
| Capacity(kg) | 950 | 900 | 820 | 880 | 1200 |
A wide scope of raw materials
After repeated tests, different dies are designed to meet the demand of different raw material. So that this device adapts to a wider range of raw material: Agro-straw, grain shells, peanut shells, cotton stalks, wood shavings, sawdust, branches, tree bark, bamboo powder, wood scraps, forestry residues and garbage can be pressed briquette after crushing. The moisture content should be kept about 15%, the size of raw material should be kept within 20mm. (pictures are listed below)The finished product produced by the mechanical stamping briquette plant
The finished products produced by the mechanical stamping briquette equipment include pellets with a diameter of 8mm-22mm and briquettes with a diameter of 30-70mm.
Diameter 8mm-22mm pellets :

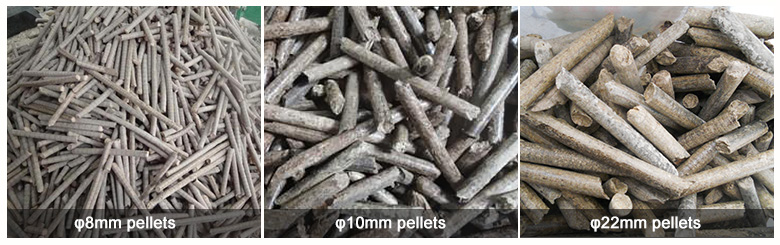

Making Diameter 8mm-22mm Pellets

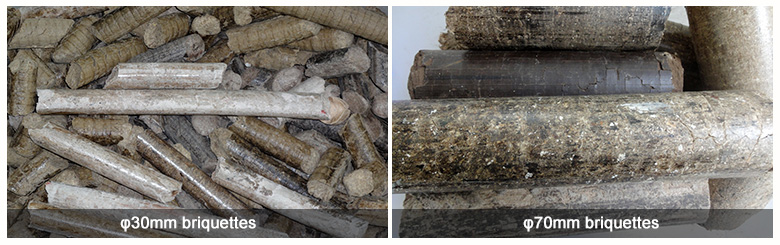

Making Diameter 30mm-70mm Briquettes
Video of Mechanical Stamping Briquette Plant
φ8mm Pellets Briquette Plant
φ70mm Briquettes Briquette Plant
9 Reasons For You To Choose Us
- The finished fuel is solid rod (as shown below), small cubage, moderate density (0.8-1.2). It is convenient for storage and transportation, and also beneficial for the anaerobic gasification reaction inside the fuel rod. It improves the calorific value of raw material up to 3500-5000 kcal.
- The special material and heat treatment process used in key components extend their service life.
- The spindle adopts No#45 steel forging under thermal refining and machining operation to mould. And then plate the surface with Cr. Thus the device has good strength, toughness and wear ability.
- This device adopts secondary compression technology which includes screw feeder pre-pressing and piston stamping.
- Adopting Germany imported bearings with separate lubrication system ensures lubrication and cooling between the moving parts, which makes equipment operate normally.
- Taking into account different characteristics of the material, speed regulating motor or variable frequency motor is equipped to regulate feeding rate, which enables different material to be fed uniformly. Specific type of motor can be adjusted according to customer’s demand.
- The device has advantages of low power consumption (produce one ton of biomass rods consume 40 kwh), high production efficiency, long service life, and low maintenance rate.
-
Rack section (shown as below) uses high strength steel plates welded together by advanced technology. Reasonable rib plate structure ensures equipment runs smoothly with frequent impact loading.
Hope that through the introduction and guidance of ABC Machinery, every customer can purchase a mechanical stamping briquette machine suitable for him. You can also choose to contact us directly, ABC Machinery will provide ex-factory price mechanical stamping briquette equipment.
