Crusher

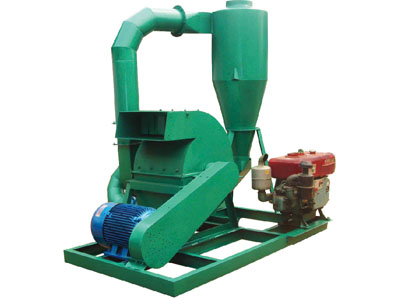

As the auxiliary equipment of pellet mill, crusher is useful for raw material. If the material is quite large (e.g., wood), you can run though a crusher to reduce the pieces to the required size.Crusher – Diesel driven
Model | Power | Capacity | Weight(NW/GW) | Packing Size |
TFS420 | 15HP | 300-600kg/h | 355/385kg | 1400*1000*1220mm |
TFS420 | 22HP | 300-600kg/h | 380/400kg | 1400*1000*1220mm |
TFS500 | 30HP | 600-800kg/h | 400/420kg | 2000*900*1700mm |

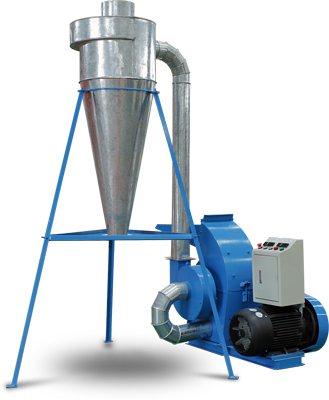

Crusher – Electric driven
Model | Power | Capacity | Weight(NW/GW) | Packing Size |
TFS158 | 1.5KW | 200-300kg/h | 75/95kg | 620*490*620mm |
TFS420 | 7.5KW | 300-600kg/h | 285/310kg | 1200*1000*1220mm |
TFS420 | 11KW | 300-600kg/h | 310/330kg | 1200*1000*1220mm |
TFS500 | 11KW | 600-800kg/h | 420/440kg | 2000*900*1700mm |
TFS500 | 15KW | 600-800kg/h | 435/460kg | 2000*900*1700mm |

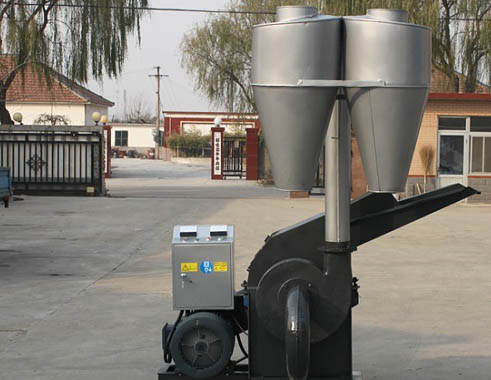

Introduction of new hammer mill

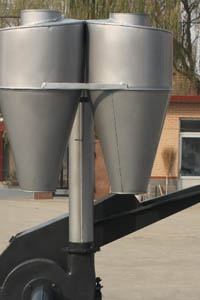

Recently we have improved the hammer mill, adding another cyclone. Before, every time after packaging, there was raw material leakage when replacing bags, now there is a handle in the middle of the cyclone through which the baiting order of the two cylinders can be adjusted so as to effectively prevent the residual material from leaking.

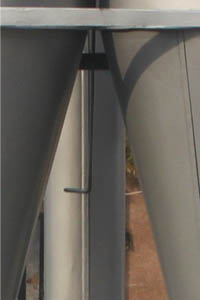

Customers can control the raw materials baiting order themselves through the handle in the middle of the cyclone. |
---|
Working Principle

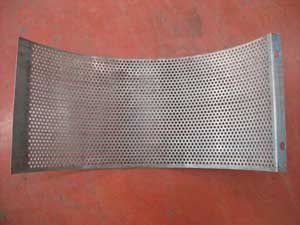

The crusher will be crushed the raw materials entering into the grinding chamber by the high-speed operation hammer. Under the effort of centrifugal force, the crushed silt is sent outside through sieve in the rotor of the centrifugal fan pressure and suction force by the fan. While without passing the sieve, the silt will repeat the process until all silt can send outside through sieve.
Crusher Mill Parts
